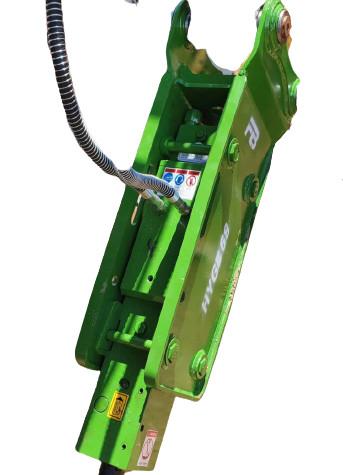

YSB125 Hydraulic Breaker Hammer For Excavator Concrete Breaker

  • 1
  • 2

Brand Name : FANGBANG

Model Number : YSB125

Place of Origin : GUANGZHOU

MOQ : negotiable

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000 Piece/Pieces per Week

Delivery Time : 5-8 work days

Packaging Details : standard packing

impact frequebcy : 350-650 bpm

Suitable Excavator(ton) : 15-18 ton

Chisel Diameter : 125mm

Name : excavator concrete breaker

weight : 620kg

Quality : High Guarantee

Contact Now

YSB125 hydraulic breaker Hammer for excavator concrete breaker

Product model and relevant data

Specname Unit YSB40 YSB53 YSB68 YSB75 YSB85 YSB100 YSB125
Body weight kg 53 89 156 214 282 479 620
size mm 918*176*360 1178*230*500 1373*295*772 1515*295*735 1735*390*910 1900*390*910 2286*480*1120
1086*156*189 1344*235*370 1684*350*486 1706*390*486 2120*438*570 2387*450*570 2673*498*600
1190*260*295 1417*350*305 1660*328*486 1712*328*486 2074*438*570 2345*440*570 2578*498*625
Operating pressure Kg/cm² 90-102 90-120 110-140 120-150 130-160 150-170 150-170
Hydraulic flow range L/min 15-25 25-50 40-70 50-90 60-100 80-110 90-120
Diameter of house inch 1/2 1/2 1/2 1/2 3/4 3/4 1
Diameter of tool mm 40 53 68 80 85 100 125
Impact frequebcy bpm 800-1400 600-1100 500-900 400-800 400-800 350-700 350-650
Suitable carrier ton 0.8-2.5 2.5-4.5 4-7 6-9 7-14 10-15 15-18

If the hydraulic breaker Hammer is not used for a long time, please keep it according to the following methods

1) Clean the outside of the crushing hammer;

2) After the steel drill is removed from the shell, apply anti-corrosion oil;

3) Before pushing the piston into the nitrogen chamber, the nitrogen in the nitrogen chamber must be sent out;

4) During reassembly, all parts of the crushing hammer shall be coated with lubricating oil before assembly.

Product application range

Mining: Breaking ore rocks, Second time crushing, Screen crushing
Metallurgy: Steel ladle and slag cleaning, Fumace dismantling, Equipment foundation removal
Public road: Highway repair, Cement pavement broken, Foundation excavation
Railway: Mountain and tunnel excavation, Road and bridge demolition, Subgrade compaction
Building: Demolition of old buildings, Broken reinforced concrete
Ship repairing and Construction: Removing clam and rust
Others: Breaking ice, Breaking frozen soils, Sand mold Vibration
Our Advantages
1) Applicable for different brands of excavators, simple& convenient &comfortable operation, easy maintenance
2) High Quality & high precision, high stability &high durability.
3) Low rate of chisel breakage and high working efficiency
4) Wear-resistant and super heat treatment technology
5) Low noise, saving energy and protecting environment
6) Powerful Hydraulic System Increased the Impact of Nitrogen
7) ISO certified by local Authority
